R-package User Guide
Luis Herfurth
Heidelberg UniversityChristina Schmidt
Heidelberg University ClinicsSource:
vignettes/user_guide.Rmd
user_guide.RmdThe MetAlyzer R-package provides a robust toolkit for importing, handling, and analyzing metabolomics data generated using either the Biocrates Quant500L™ or Quant500XL™ kit and the Biocrates WebIDQ™ software (BIOCRATES Life Sciences AG, Innsbruck, Austria). It structures the data into a SummarizedExperiment (SE) (Morgan et al. 2025) object, facilitating integration with Bioconductor workflows and enabling downstream statistical analysis and visualization. To aid in biological interpretation, MetAlyzer offers functions to generate key visualizations. These include scatter plots with information about the metabolite classes as assigned by BIOCRATES Life Sciences AG and a network plot, which readily visualizes the whole metabolite space of the kit and colour codes the metabolites that are detected for e.g. Log2FC differences between conditions of interest. These network visualizations are crucial for understanding the complex interconnections between metabolites, helping to find pathway-level alterations and providing a systems perspective on the metabolic response under investigation.
Loading and Exploring Data
Import data from WebIDQ™
MetAlyzer’s primary entry point is the
MetAlyzer::read_webidq() function, which reads WebIDQ™
.xlsx output files (Fig. 1).
As the output files contain layered information, inform of concentration
values and color-coded quantification status (e.g., “Valid”, “LOD”,
“LOQ”), it is a tedious task to reliably process this data
computationally, as the mix of numerical values and status codes hinders
direct machine readability by standard analysis tools. To conveniently
read the data in we provide the function
MetAlyzer::read_webidq(), structuring the data into a
SummarizedExperiment (SE) object (Morgan et al.
2025) for easy downstream analysis. For further demonstration
we’ll use a demo dataset kindly provided by BIOCRATES Life Sciences AG,
featuring metabolite measurements across two groups (MxP®Quant 500 kit).
This dataset is included in the MetAlyzer R
package as the example data.
Figure 1: Output of Biocrates WebIDQ™.
# Access the example data file path
fpath <- MetAlyzer::load_demodata_biocrates()
# Load the data into a SummarizedExperiment object
metalyzer_se <- MetAlyzer::read_webidq(fpath,
silent = TRUE)
# Display the object summary
metalyzer_se
#> class: SummarizedExperiment
#> dim: 1019 20
#> metadata(4): file_path sheet_index status_list aggregated_data
#> assays(2): conc_values quant_status
#> rownames(1019): C0 C2 ... TG 22:6_34:3 Choline
#> rowData names(1): metabolic_classes
#> colnames(20): 14 15 ... 32 33
#> colData names(13): Plate bar code Sample bar code ... Injection number
#> Measurement timeThe resulting SummarizedExperiment object organizes the data:
Assay: Contains matrices for
MetAlyzer::conc_values (metabolite concentrations) and
MetAlyzer::quant_status (quantification status).
rowData: Stores metabolite information, including names
and assigned classes. Note the distinction between quantified
metabolites and calculated ‘Metabolism Indicators’.
colData: Holds sample-specific metadata provided in the
input file or added later.
metadata: Contains
supplementary information like the original file path, sheet index,
status color mappings, and a pre-joined aggregated_data tibble combining
concentrations, status, and metadata for easier analysis and
plotting.
| 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26 | 27 | 28 | 29 | 30 | 31 | 32 | 33 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C0 | 16.400000 | 15.000000 | 14.900000 | 16.400000 | 16.200000 | 15.900000 | 15.300000 | 16.200000 | 15.20000 | 16.300000 | 37.500000 | 31.000000 | 24.300000 | 25.100000 | 38.800000 | 31.200000 | 32.400000 | 28.300000 | 31.700000 | 31.000000 |
| C2 | 2.180000 | 2.020000 | 1.930000 | 2.390000 | 2.430000 | 2.180000 | 2.080000 | 2.390000 | 2.30000 | 2.400000 | 4.170000 | 3.690000 | 3.250000 | 4.570000 | 4.220000 | 4.060000 | 3.820000 | 3.770000 | 3.580000 | 4.510000 |
| C3 | 2.300000 | 2.150000 | 2.180000 | 2.470000 | 2.500000 | 1.960000 | 1.950000 | 2.400000 | 2.02000 | 2.470000 | 1.110000 | 1.010000 | 0.980000 | 0.950000 | 1.320000 | 1.060000 | 1.100000 | 0.995000 | 0.996000 | 1.010000 |
| C3-DC (C4-OH) | 0.032707 | 0.036251 | 0.039705 | 0.047537 | 0.042832 | 0.041272 | 0.039284 | 0.041027 | 0.04055 | 0.041446 | 0.042609 | 0.039763 | 0.043894 | 0.047226 | 0.041546 | 0.047589 | 0.041796 | 0.047158 | 0.039900 | 0.067801 |
| C3-OH | 0.151405 | 0.089557 | 0.099846 | 0.111255 | 0.091946 | 0.079343 | 0.000000 | 0.000000 | 0.00000 | 0.057869 | 0.000000 | 0.051607 | 0.304305 | 0.099947 | 0.125005 | 0.154705 | 0.274055 | 0.000000 | 0.243805 | 0.096540 |
| C3:1 | 0.000000 | 0.005729 | 0.004241 | 0.016194 | 0.007926 | 0.007806 | 0.013766 | 0.000000 | 0.00000 | 0.012958 | 0.004562 | 0.000000 | 0.009447 | 0.011717 | 0.000000 | 0.012886 | 0.008210 | 0.000000 | 0.013228 | 0.015004 |
| metabolic_classes | |
|---|---|
| C0 | Acylcarnitines |
| C2 | Acylcarnitines |
| C3 | Acylcarnitines |
| C3-DC (C4-OH) | Acylcarnitines |
| C3-OH | Acylcarnitines |
| C3:1 | Acylcarnitines |
| Plate.bar.code | Sample.bar.code | Sample.type | Sample.Description | Submission.name | Species | Material | OP | Well.position | Sample.volume | Run.number | Injection.number | Measurement.time | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 1111127477-1 | 1112165129-1 | 1112165135-1 | 1098765082 | Sample | Group 1 | MetAlyzer demo dataset | human | plasma | MXP500X-0-5711 | MXP500L-0-5713 | MXP500F-0-5713 | 82 | 10 | 1 | 1 (+) 1 (-) | 1 (+) 1 (-) | 1 (+) 1 (+) | 2025-03-29 21:47 2025-03-30 03:32 | 2025-03-28 02:09 2025-03-28 12:22 | 2025-03-28 22:47 2025-03-29 04:33 |
| 15 | 1111127477-1 | 1112165129-1 | 1112165135-1 | 1098765086 | Sample | Group 1 | MetAlyzer demo dataset | human | plasma | MXP500X-0-5711 | MXP500L-0-5713 | MXP500F-0-5713 | 94 | 10 | 1 | 1 (+) 1 (-) | 1 (+) 1 (-) | 1 (+) 1 (+) | 2025-03-29 21:51 2025-03-30 03:35 | 2025-03-28 02:15 2025-03-28 12:28 | 2025-03-28 22:51 2025-03-29 04:36 |
| 16 | 1111127477-1 | 1112165129-1 | 1112165135-1 | 1098765106 | Sample | Group 1 | MetAlyzer demo dataset | human | plasma | MXP500X-0-5711 | MXP500L-0-5713 | MXP500F-0-5713 | 23 | 10 | 1 | 1 (+) 1 (-) | 1 (+) 1 (-) | 1 (+) 1 (+) | 2025-03-29 21:58 2025-03-30 03:42 | 2025-03-28 02:27 2025-03-28 12:41 | 2025-03-28 22:58 2025-03-29 04:43 |
| 17 | 1111127477-1 | 1112165129-1 | 1112165135-1 | 1098765136 | Sample | Group 1 | MetAlyzer demo dataset | human | plasma | MXP500X-0-5711 | MXP500L-0-5713 | MXP500F-0-5713 | 59 | 10 | 1 | 1 (+) 1 (-) | 1 (+) 1 (-) | 1 (+) 1 (+) | 2025-03-29 22:08 2025-03-30 03:53 | 2025-03-28 02:46 2025-03-28 13:00 | 2025-03-28 23:08 2025-03-29 04:54 |
| 18 | 1111127477-1 | 1112165129-1 | 1112165135-1 | 1098765150 | Sample | Group 1 | MetAlyzer demo dataset | human | plasma | MXP500X-0-5711 | MXP500L-0-5713 | MXP500F-0-5713 | 71 | 10 | 1 | 1 (+) 1 (-) | 1 (+) 1 (-) | 1 (+) 1 (+) | 2025-03-29 22:12 2025-03-30 03:56 | 2025-03-28 02:52 2025-03-28 13:06 | 2025-03-28 23:12 2025-03-29 04:57 |
| 19 | 1111127477-1 | 1112165129-1 | 1112165135-1 | 1098765169 | Sample | Group 1 | MetAlyzer demo dataset | human | plasma | MXP500X-0-5711 | MXP500L-0-5713 | MXP500F-0-5713 | 95 | 10 | 1 | 1 (+) 1 (-) | 1 (+) 1 (-) | 1 (+) 1 (+) | 2025-03-29 22:19 2025-03-30 04:03 | 2025-03-28 03:04 2025-03-28 13:18 | 2025-03-28 23:19 2025-03-29 05:04 |
Differential analysis results
The MetAlyzer R package does not include
processing or differential analysis itself, as it’s aim is to import
Biocrates files and visualize the results. Given the many tools and R
packages dedicated for quality control and differential analysis, we
decided to not focus on this within the R package. You can either use
the MetAlyzer shiny app, the MetAlyzer helper functions used in the
shiny app or other dedicated R-packages specifically designed to support
those analysis such as the MetaProViz R
package (Schmidt et al. 2025). If you are
not familiar with using R, you can use our shiny app, which will do the
whole process from start to finish (Link to
MetAlyzer Shiny App).
If you already have differential analysis results, you can skip this
section and just load our internal example data of differential analysis
results MetAlyzer::toy_diffres().
diffres_df <- readRDS(MetAlyzer::toy_diffres())
head(diffres_df) %>%
kableExtra::kbl(caption = "Preview of Assay containing colData.") %>%
kableExtra::kable_classic(full_width = F, html_font = "Cambria", font_size = 12)| Metabolite | Class | log2FC | pval | qval |
|---|---|---|---|---|
| 1-Met-His | Aminoacids Related | -0.4109399 | 0.0001006 | 0.0001345 |
| 3-IAA | Indoles Derivatives | -1.5992416 | 0.0000000 | 0.0000000 |
| 3-IPA | Indoles Derivatives | -1.2735178 | 0.0000071 | 0.0000103 |
| 3-Met-His | Aminoacids Related | -1.1686826 | 0.0000089 | 0.0000128 |
| 5-AVA | Aminoacids Related | 1.5654391 | 0.0000000 | 0.0000000 |
| AABA | Aminoacids Related | -1.3264374 | 0.0000000 | 0.0000000 |
#@Add: t-value column into the example data!
::: {style=“text-align: justify”} This table contains columns for
metabolite names (Metabolite), their class
(Class), calculated log2 fold change (log2FC), and adjusted
p-values (adj.P.Val). We can directly use this dataframe as input to the
to the MetAlyzer visualization functions.
:::
MetAlyzer Plots
The plotting functions MetAlyzer::plot_scatter() and
MetAlyzer::plot_network() can accept a standard data frame
containing differential expression results. This example data was
generated from the raw extraction data, and compares the concentrations
between the different tissue types. (ADD?) more biological
informations!
Scatter Plot

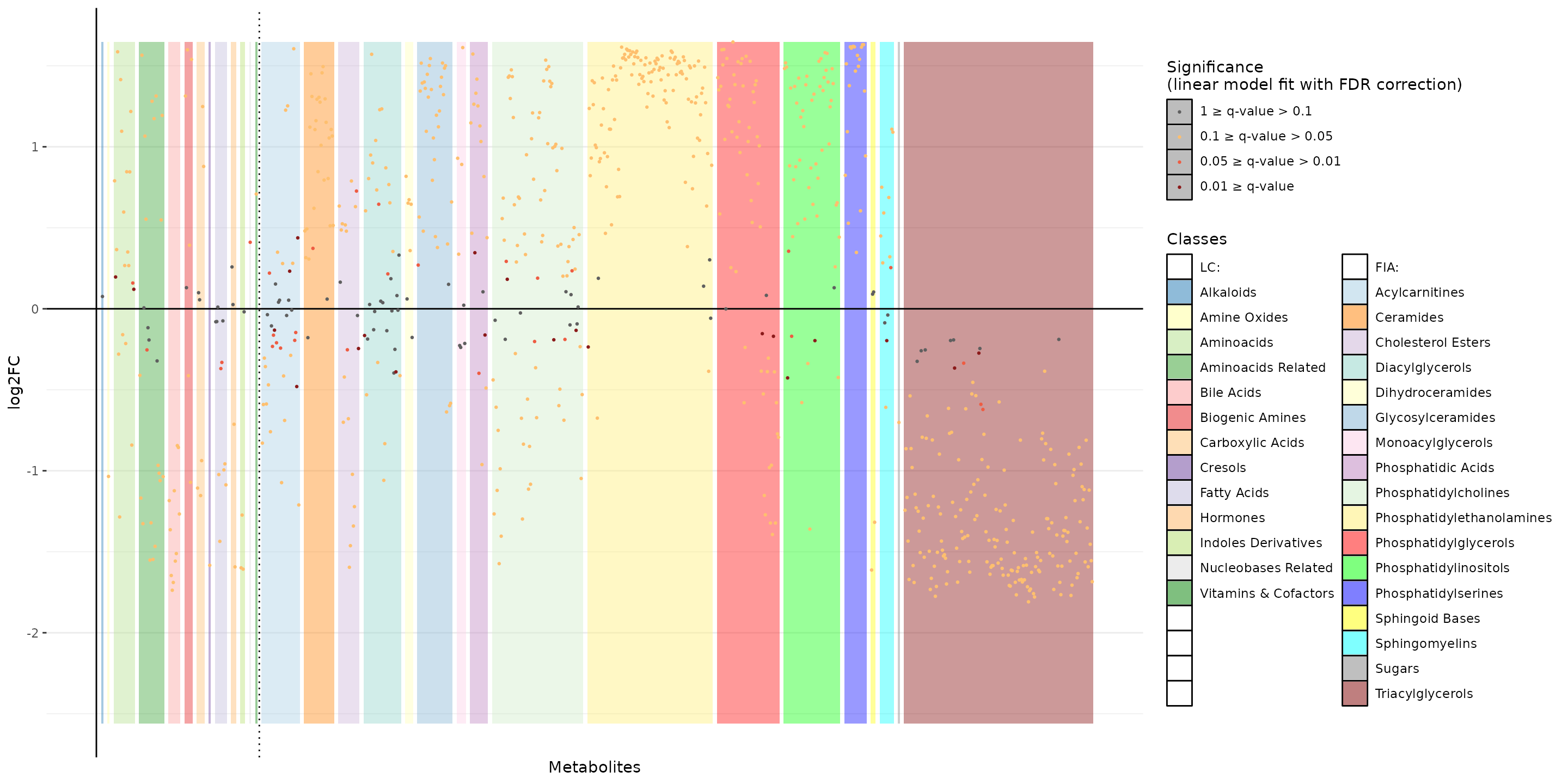

The MetAlyzer::plot_scatter() function visualizes log2
fold changes, primarily to assess the behavior of different
metabolite classes. Background colors distinguish these
classes, enabling users to interpret if certain groups of metabolites
exhibit distinct regulatory patterns (e.g., consistent
up/down-regulation, specific ranges of fold changes). The plot is
horizontally separated by extraction method (“LC” left, “FIA” right),
allowing comparison of whether these observed class-specific trends are
consistent across both methods or show method-dependent variations.
# Scatter plot grouped by metabolic class
MetAlyzer::plot_scatter(diffres_df)
Pathway Network Visualization

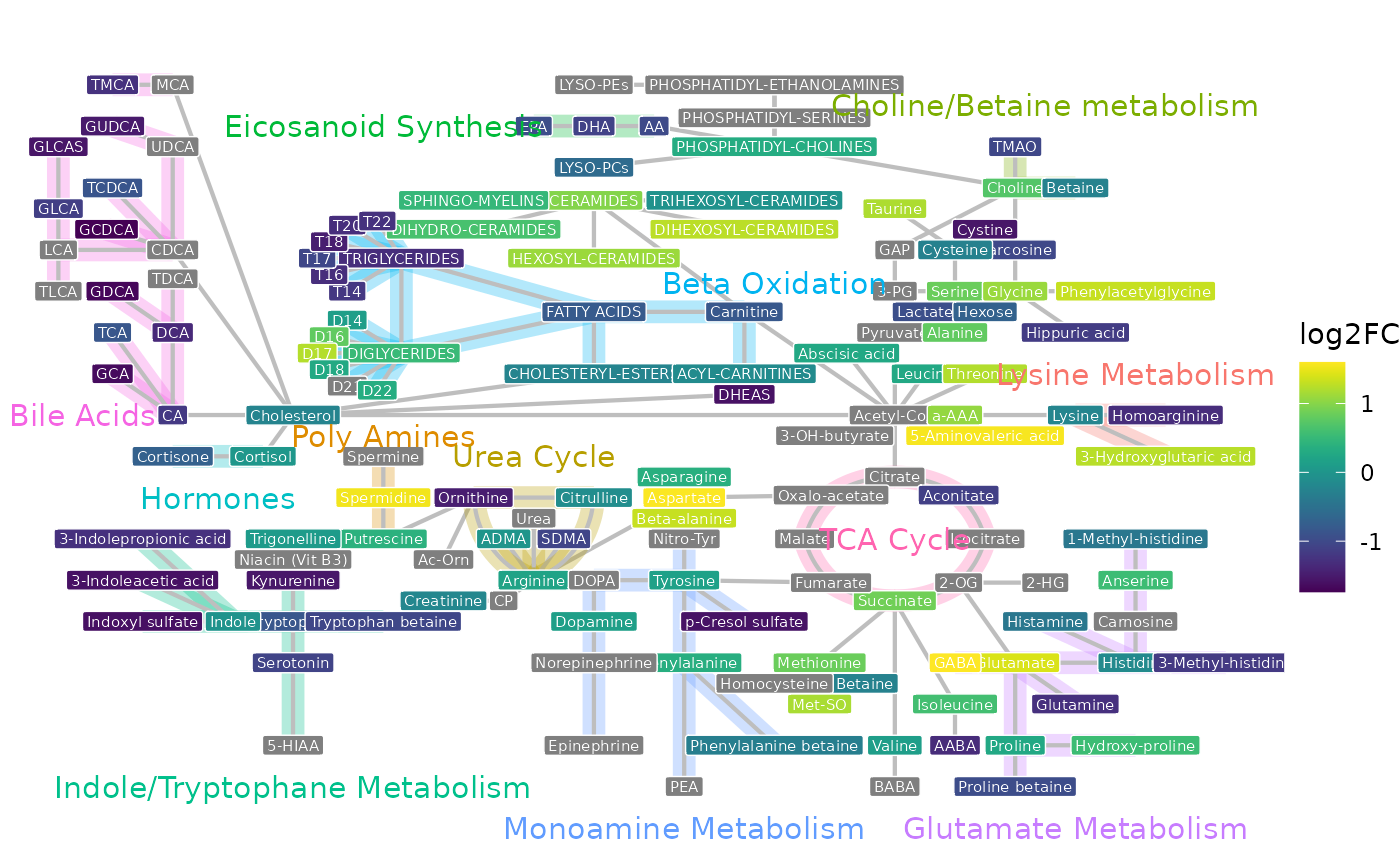

Visualize significant changes across metabolic pathways using
MetAlyzer::plot_network(). This function maps the log2 fold
changes (log2FC) of metabolites onto a predefined network structure,
representing known biochemical reactions and relationships.
Relevance and Interpretation:
This network visualization provides a systems-level
perspective, going beyond individual metabolite changes. Its
relevance lies in helping users understand how metabolic perturbations
are interconnected within the broader context of biological pathways. By
examining the network, users can:
* Identify affected pathways: Observe clusters of
connected nodes with significant changes (indicated by color) within
labeled pathways (e.g., “TCA Cycle”, “Fatty Acids”, “Bile Acids” as seen
in Figure X). This suggests potential up- or down-regulation of entire
metabolic processes.
* Understand relationships: Trace connections between
metabolites to see how changes in one area might influence others
upstream or downstream.
* Generate hypotheses: Patterns observed in the network
can suggest underlying mechanisms or key regulatory points affected by
the experimental conditions.
Importantly, for the colour coding of the metabolites the user can
chosse different information like Log2FC, t-value or also p-value,
dependent on the needs.
# Generate network plot from the data frame
# Requires metabolite, class, log2fc, and p-value columns
network <- MetAlyzer::plot_network(
diffres_df,
q_value = 0.05,
metabolite_col = "Metabolite",
values_col_name = "log2FC",
stat_col_name = "qval",
metabolite_text_size = 2,
connection_width = 0.75,
pathway_text_size = 4,
pathway_width = 4,
)
#> Warning: Removing 4 invalid nodes.
network$Plot
Node Summarization and Representation:
Each node in the network represents a metabolite or a metabolite
class. The color of the node typically reflects its log2FC value (incase
the viridis scale was selected, yellow represents a positiv log2 Fold
Change and purlbe a negative log2 Fold Change).

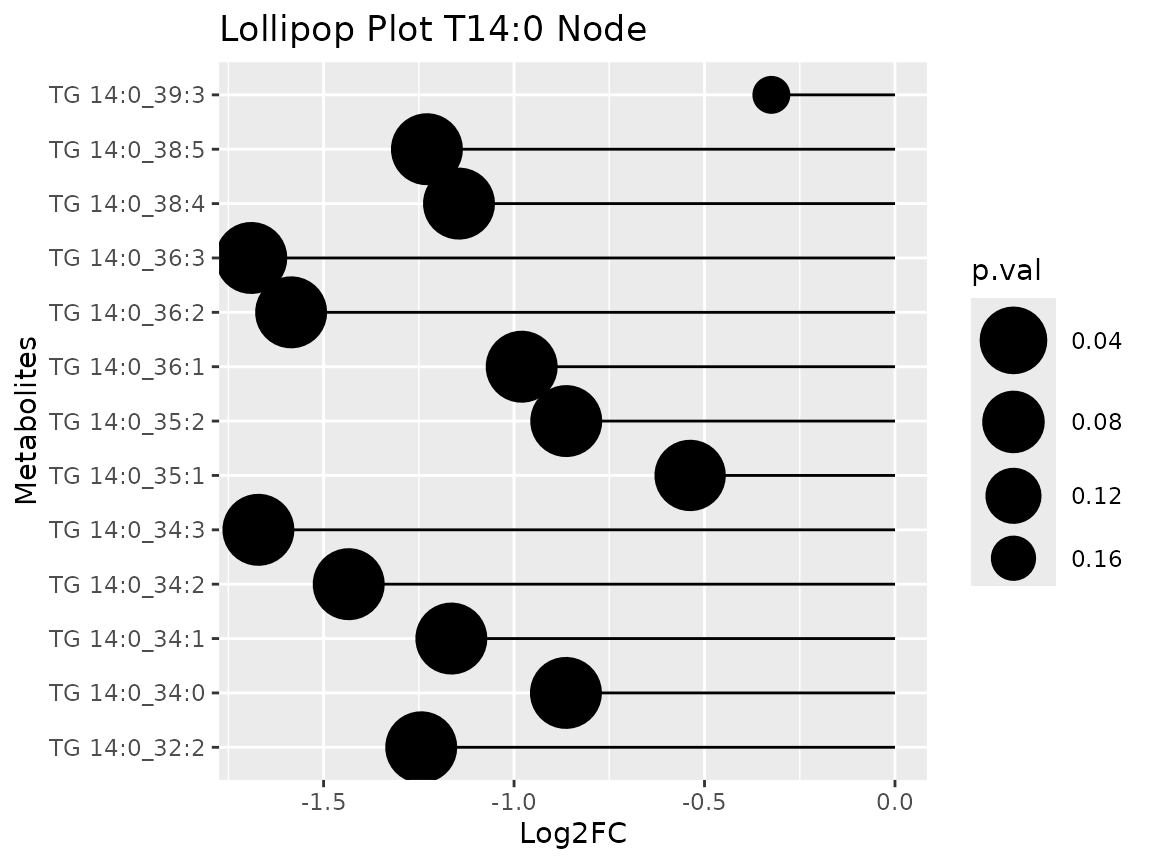

Some nodes, such as ‘T14’ which might group related species like ‘T
14:0_32:2’, ‘T 14:0_34:0’, ‘T 14:0_34:1’, display a summarized
value. This value is calculated according to the following
hierarchy to prioritize significant findings:
1. Mean of Significant: If one or more metabolites
mapping to the node are statistically significant (e.g., based on FDR
corrected p-values), the node’s value represents the mean log2FC
of only those significant metabolites.
2. Mean of Measured: If none of the associated
metabolites are significant, but measurements exist for them, the node’s
value represents the mean log2FC of all measured
metabolites mapping to that node.
3. NA: If no metabolites mapping to the node were
measured or included in the dataset, the node value is NA (often
represented as grey or uncolored, like some nodes in Figure X).
This summarization approach provides a concise overview within the
network, highlighting significant changes where present, while still
providing context from measured data if significance is not reached. Due
to the changing naming convention of Biocrates, we include old names in
the excel file, which will show up as NA for later generated WebIDQ™
outputs (e.g. TG(14:0_32.2)), but this enables the analysis of older
files as well. (ADD?) we
need a date here, like from which year the exports work, and guidance
how someone can export the required old names form WebIDQ as we know how
that works
T14_node_expanded <- network$Table%>%
dplyr::filter(Label == "T14")%>%
tidyr::separate_rows(Metabolites, values, stat, sep = "\\s*;\\s*") %>%
dplyr::rename(p.val = stat, Log2FC = values) %>%
dplyr::mutate(
Log2FC = as.numeric(Log2FC),
p.val = as.numeric(p.val)
)| Label | collapsed_count | Pathway | Metabolites | x | y | Shape | Class | pval | node_log2FC | node_qval | Log2FC | p.val |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T14 | 28 | Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation | TG(14:0_32:2) | 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49 | 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130 | s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; 1.89171843064893e-07; 0.000208463127680008; 5.91769547770039e-07; 1.00258090190554e-09; 1.88954329456647e-09; 0.00499134416769618; 2.70837226733034e-06; 8.10764798179789e-05; 4.02651695496626e-12; 1.13920607075708e-11; NA; 3.58323931744741e-09; 3.85374181284349e-08; 0.156299137045528 | -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727 | 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092 | NA | NA |
| T14 | 28 | Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation | TG(14:0_34:0) | 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49 | 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130 | s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; 1.89171843064893e-07; 0.000208463127680008; 5.91769547770039e-07; 1.00258090190554e-09; 1.88954329456647e-09; 0.00499134416769618; 2.70837226733034e-06; 8.10764798179789e-05; 4.02651695496626e-12; 1.13920607075708e-11; NA; 3.58323931744741e-09; 3.85374181284349e-08; 0.156299137045528 | -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727 | 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092 | NA | NA |
| T14 | 28 | Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation | TG(14:0_34:1) | 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49 | 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130 | s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; 1.89171843064893e-07; 0.000208463127680008; 5.91769547770039e-07; 1.00258090190554e-09; 1.88954329456647e-09; 0.00499134416769618; 2.70837226733034e-06; 8.10764798179789e-05; 4.02651695496626e-12; 1.13920607075708e-11; NA; 3.58323931744741e-09; 3.85374181284349e-08; 0.156299137045528 | -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727 | 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092 | NA | NA |
| T14 | 28 | Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation | TG(14:0_34:2) | 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49 | 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130 | s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; 1.89171843064893e-07; 0.000208463127680008; 5.91769547770039e-07; 1.00258090190554e-09; 1.88954329456647e-09; 0.00499134416769618; 2.70837226733034e-06; 8.10764798179789e-05; 4.02651695496626e-12; 1.13920607075708e-11; NA; 3.58323931744741e-09; 3.85374181284349e-08; 0.156299137045528 | -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727 | 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092 | NA | NA |
| T14 | 28 | Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation | TG(14:0_34:3) | 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49 | 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130 | s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; 1.89171843064893e-07; 0.000208463127680008; 5.91769547770039e-07; 1.00258090190554e-09; 1.88954329456647e-09; 0.00499134416769618; 2.70837226733034e-06; 8.10764798179789e-05; 4.02651695496626e-12; 1.13920607075708e-11; NA; 3.58323931744741e-09; 3.85374181284349e-08; 0.156299137045528 | -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727 | 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092 | NA | NA |
| T14 | 28 | Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation | TG(14:0_35:1) | 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49 | 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130 | s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; 1.89171843064893e-07; 0.000208463127680008; 5.91769547770039e-07; 1.00258090190554e-09; 1.88954329456647e-09; 0.00499134416769618; 2.70837226733034e-06; 8.10764798179789e-05; 4.02651695496626e-12; 1.13920607075708e-11; NA; 3.58323931744741e-09; 3.85374181284349e-08; 0.156299137045528 | -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727 | 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092 | NA | NA |
| T14 | 28 | Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation | TG(14:0_35:2) | 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49 | 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130 | s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; 1.89171843064893e-07; 0.000208463127680008; 5.91769547770039e-07; 1.00258090190554e-09; 1.88954329456647e-09; 0.00499134416769618; 2.70837226733034e-06; 8.10764798179789e-05; 4.02651695496626e-12; 1.13920607075708e-11; NA; 3.58323931744741e-09; 3.85374181284349e-08; 0.156299137045528 | -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727 | 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092 | NA | NA |
| T14 | 28 | Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation | TG(14:0_36:1) | 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49 | 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130 | s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; 1.89171843064893e-07; 0.000208463127680008; 5.91769547770039e-07; 1.00258090190554e-09; 1.88954329456647e-09; 0.00499134416769618; 2.70837226733034e-06; 8.10764798179789e-05; 4.02651695496626e-12; 1.13920607075708e-11; NA; 3.58323931744741e-09; 3.85374181284349e-08; 0.156299137045528 | -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727 | 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092 | NA | NA |
| T14 | 28 | Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation | TG(14:0_36:2) | 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49 | 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130 | s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; 1.89171843064893e-07; 0.000208463127680008; 5.91769547770039e-07; 1.00258090190554e-09; 1.88954329456647e-09; 0.00499134416769618; 2.70837226733034e-06; 8.10764798179789e-05; 4.02651695496626e-12; 1.13920607075708e-11; NA; 3.58323931744741e-09; 3.85374181284349e-08; 0.156299137045528 | -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727 | 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092 | NA | NA |
| T14 | 28 | Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation | TG(14:0_36:3) | 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49 | 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130 | s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; 1.89171843064893e-07; 0.000208463127680008; 5.91769547770039e-07; 1.00258090190554e-09; 1.88954329456647e-09; 0.00499134416769618; 2.70837226733034e-06; 8.10764798179789e-05; 4.02651695496626e-12; 1.13920607075708e-11; NA; 3.58323931744741e-09; 3.85374181284349e-08; 0.156299137045528 | -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727 | 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092 | NA | NA |
| T14 | 28 | Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation | TG(14:0_36:4) | 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49 | 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130 | s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; 1.89171843064893e-07; 0.000208463127680008; 5.91769547770039e-07; 1.00258090190554e-09; 1.88954329456647e-09; 0.00499134416769618; 2.70837226733034e-06; 8.10764798179789e-05; 4.02651695496626e-12; 1.13920607075708e-11; NA; 3.58323931744741e-09; 3.85374181284349e-08; 0.156299137045528 | -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727 | 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092 | NA | NA |
| T14 | 28 | Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation | TG(14:0_38:4) | 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49 | 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130 | s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; 1.89171843064893e-07; 0.000208463127680008; 5.91769547770039e-07; 1.00258090190554e-09; 1.88954329456647e-09; 0.00499134416769618; 2.70837226733034e-06; 8.10764798179789e-05; 4.02651695496626e-12; 1.13920607075708e-11; NA; 3.58323931744741e-09; 3.85374181284349e-08; 0.156299137045528 | -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727 | 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092 | NA | NA |
| T14 | 28 | Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation | TG(14:0_38:5) | 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49 | 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130 | s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; 1.89171843064893e-07; 0.000208463127680008; 5.91769547770039e-07; 1.00258090190554e-09; 1.88954329456647e-09; 0.00499134416769618; 2.70837226733034e-06; 8.10764798179789e-05; 4.02651695496626e-12; 1.13920607075708e-11; NA; 3.58323931744741e-09; 3.85374181284349e-08; 0.156299137045528 | -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727 | 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092 | NA | NA |
| T14 | 28 | Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation | TG(14:0_39:3) | 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49 | 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130 | s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; 1.89171843064893e-07; 0.000208463127680008; 5.91769547770039e-07; 1.00258090190554e-09; 1.88954329456647e-09; 0.00499134416769618; 2.70837226733034e-06; 8.10764798179789e-05; 4.02651695496626e-12; 1.13920607075708e-11; NA; 3.58323931744741e-09; 3.85374181284349e-08; 0.156299137045528 | -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727 | 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092 | NA | NA |
| T14 | 28 | Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation | TG 14:0_32:2 | 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49 | 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130 | s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; 1.89171843064893e-07; 0.000208463127680008; 5.91769547770039e-07; 1.00258090190554e-09; 1.88954329456647e-09; 0.00499134416769618; 2.70837226733034e-06; 8.10764798179789e-05; 4.02651695496626e-12; 1.13920607075708e-11; NA; 3.58323931744741e-09; 3.85374181284349e-08; 0.156299137045528 | -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727 | 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092 | -1.2436774 | 0.0000003 |
| T14 | 28 | Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation | TG 14:0_34:0 | 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49 | 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130 | s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; 1.89171843064893e-07; 0.000208463127680008; 5.91769547770039e-07; 1.00258090190554e-09; 1.88954329456647e-09; 0.00499134416769618; 2.70837226733034e-06; 8.10764798179789e-05; 4.02651695496626e-12; 1.13920607075708e-11; NA; 3.58323931744741e-09; 3.85374181284349e-08; 0.156299137045528 | -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727 | 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092 | -0.8638230 | 0.0002738 |
| T14 | 28 | Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation | TG 14:0_34:1 | 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49 | 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130 | s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; 1.89171843064893e-07; 0.000208463127680008; 5.91769547770039e-07; 1.00258090190554e-09; 1.88954329456647e-09; 0.00499134416769618; 2.70837226733034e-06; 8.10764798179789e-05; 4.02651695496626e-12; 1.13920607075708e-11; NA; 3.58323931744741e-09; 3.85374181284349e-08; 0.156299137045528 | -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727 | 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092 | -1.1646092 | 0.0000009 |
| T14 | 28 | Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation | TG 14:0_34:2 | 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49 | 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130 | s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; 1.89171843064893e-07; 0.000208463127680008; 5.91769547770039e-07; 1.00258090190554e-09; 1.88954329456647e-09; 0.00499134416769618; 2.70837226733034e-06; 8.10764798179789e-05; 4.02651695496626e-12; 1.13920607075708e-11; NA; 3.58323931744741e-09; 3.85374181284349e-08; 0.156299137045528 | -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727 | 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092 | -1.4340182 | 0.0000000 |
| T14 | 28 | Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation | TG 14:0_34:3 | 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49 | 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130 | s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; 1.89171843064893e-07; 0.000208463127680008; 5.91769547770039e-07; 1.00258090190554e-09; 1.88954329456647e-09; 0.00499134416769618; 2.70837226733034e-06; 8.10764798179789e-05; 4.02651695496626e-12; 1.13920607075708e-11; NA; 3.58323931744741e-09; 3.85374181284349e-08; 0.156299137045528 | -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727 | 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092 | -1.6711127 | 0.0000000 |
| T14 | 28 | Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation | TG 14:0_35:1 | 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49 | 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130 | s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; 1.89171843064893e-07; 0.000208463127680008; 5.91769547770039e-07; 1.00258090190554e-09; 1.88954329456647e-09; 0.00499134416769618; 2.70837226733034e-06; 8.10764798179789e-05; 4.02651695496626e-12; 1.13920607075708e-11; NA; 3.58323931744741e-09; 3.85374181284349e-08; 0.156299137045528 | -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727 | 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092 | -0.5377593 | 0.0059639 |
| T14 | 28 | Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation | TG 14:0_35:2 | 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49 | 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130 | s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; 1.89171843064893e-07; 0.000208463127680008; 5.91769547770039e-07; 1.00258090190554e-09; 1.88954329456647e-09; 0.00499134416769618; 2.70837226733034e-06; 8.10764798179789e-05; 4.02651695496626e-12; 1.13920607075708e-11; NA; 3.58323931744741e-09; 3.85374181284349e-08; 0.156299137045528 | -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727 | 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092 | -0.8629864 | 0.0000041 |
| T14 | 28 | Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation | TG 14:0_36:1 | 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49 | 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130 | s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; 1.89171843064893e-07; 0.000208463127680008; 5.91769547770039e-07; 1.00258090190554e-09; 1.88954329456647e-09; 0.00499134416769618; 2.70837226733034e-06; 8.10764798179789e-05; 4.02651695496626e-12; 1.13920607075708e-11; NA; 3.58323931744741e-09; 3.85374181284349e-08; 0.156299137045528 | -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727 | 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092 | -0.9799343 | 0.0001094 |
| T14 | 28 | Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation | TG 14:0_36:2 | 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49 | 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130 | s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; 1.89171843064893e-07; 0.000208463127680008; 5.91769547770039e-07; 1.00258090190554e-09; 1.88954329456647e-09; 0.00499134416769618; 2.70837226733034e-06; 8.10764798179789e-05; 4.02651695496626e-12; 1.13920607075708e-11; NA; 3.58323931744741e-09; 3.85374181284349e-08; 0.156299137045528 | -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727 | 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092 | -1.5851492 | 0.0000000 |
| T14 | 28 | Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation | TG 14:0_36:3 | 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49 | 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130 | s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; 1.89171843064893e-07; 0.000208463127680008; 5.91769547770039e-07; 1.00258090190554e-09; 1.88954329456647e-09; 0.00499134416769618; 2.70837226733034e-06; 8.10764798179789e-05; 4.02651695496626e-12; 1.13920607075708e-11; NA; 3.58323931744741e-09; 3.85374181284349e-08; 0.156299137045528 | -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727 | 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092 | -1.6897735 | 0.0000000 |
| T14 | 28 | Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation | TG 14:0_36:4 | 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49 | 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130 | s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; 1.89171843064893e-07; 0.000208463127680008; 5.91769547770039e-07; 1.00258090190554e-09; 1.88954329456647e-09; 0.00499134416769618; 2.70837226733034e-06; 8.10764798179789e-05; 4.02651695496626e-12; 1.13920607075708e-11; NA; 3.58323931744741e-09; 3.85374181284349e-08; 0.156299137045528 | -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727 | 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092 | NA | NA |
| T14 | 28 | Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation | TG 14:0_38:4 | 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49 | 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130 | s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; 1.89171843064893e-07; 0.000208463127680008; 5.91769547770039e-07; 1.00258090190554e-09; 1.88954329456647e-09; 0.00499134416769618; 2.70837226733034e-06; 8.10764798179789e-05; 4.02651695496626e-12; 1.13920607075708e-11; NA; 3.58323931744741e-09; 3.85374181284349e-08; 0.156299137045528 | -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727 | 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092 | -1.1445111 | 0.0000000 |
| T14 | 28 | Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation | TG 14:0_38:5 | 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49 | 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130 | s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; 1.89171843064893e-07; 0.000208463127680008; 5.91769547770039e-07; 1.00258090190554e-09; 1.88954329456647e-09; 0.00499134416769618; 2.70837226733034e-06; 8.10764798179789e-05; 4.02651695496626e-12; 1.13920607075708e-11; NA; 3.58323931744741e-09; 3.85374181284349e-08; 0.156299137045528 | -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727 | 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092 | -1.2287158 | 0.0000001 |
| T14 | 28 | Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation; Beta Oxidation | TG 14:0_39:3 | 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49; 49 | 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130; 130 | s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s; s | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; Triacylglycerols; NA; Triacylglycerols; Triacylglycerols; Triacylglycerols | NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; NA; 1.89171843064893e-07; 0.000208463127680008; 5.91769547770039e-07; 1.00258090190554e-09; 1.88954329456647e-09; 0.00499134416769618; 2.70837226733034e-06; 8.10764798179789e-05; 4.02651695496626e-12; 1.13920607075708e-11; NA; 3.58323931744741e-09; 3.85374181284349e-08; 0.156299137045528 | -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727; -1.20050584256727 | 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092; 0.000529373135132092 | -0.3245088 | 0.1679813 |
For easy visualisation of the summarized nodes, you can plot them as a Volcano plot or Lollipop graph. this allows to inspect the direction of change (negative/positive Log2FC) and p-value of the differential analysis. Here we show a minimal example using ggplot2 ((ADD?) Reference). :::
ggplot2::ggplot(T14_node_expanded %>%na.omit(), ggplot2::aes(x=Log2FC, y=Metabolites)) +
ggplot2::geom_segment(ggplot2::aes(x=0, xend=Log2FC, yend=factor(Metabolites)))+
ggplot2::geom_point(ggplot2::aes(size =p.val)) +
ggplot2::scale_size_continuous(trans = "reverse", range = c(6, 12))+
ggplot2::labs(title = "Lollipop Plot T14:0 Node")
Session information
#> R version 4.5.2 (2025-10-31)
#> Platform: x86_64-pc-linux-gnu
#> Running under: Ubuntu 24.04.3 LTS
#>
#> Matrix products: default
#> BLAS: /usr/lib/x86_64-linux-gnu/blas/libblas.so.3.12.0
#> LAPACK: /usr/lib/x86_64-linux-gnu/lapack/liblapack.so.3.12.0 LAPACK version 3.12.0
#>
#> locale:
#> [1] LC_CTYPE=en_US.UTF-8 LC_NUMERIC=C LC_TIME=en_US.UTF-8 LC_COLLATE=en_US.UTF-8
#> [5] LC_MONETARY=en_US.UTF-8 LC_MESSAGES=en_US.UTF-8 LC_PAPER=en_US.UTF-8 LC_NAME=C
#> [9] LC_ADDRESS=C LC_TELEPHONE=C LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C
#>
#> time zone: UTC
#> tzcode source: system (glibc)
#>
#> attached base packages:
#> [1] stats graphics grDevices utils datasets methods base
#>
#> other attached packages:
#> [1] dplyr_1.1.4 MetAlyzer_1.1.0
#>
#> loaded via a namespace (and not attached):
#> [1] SummarizedExperiment_1.40.0 gtable_0.3.6 xfun_0.54 bslib_0.9.0
#> [5] ggplot2_4.0.1 htmlwidgets_1.6.4 ggrepel_0.9.6 Biobase_2.70.0
#> [9] lattice_0.22-5 vctrs_0.6.5 tools_4.5.2 generics_0.1.4
#> [13] stats4_4.5.2 tibble_3.3.0 pkgconfig_2.0.3 Matrix_1.7-4
#> [17] data.table_1.17.8 RColorBrewer_1.1-3 S7_0.2.1 desc_1.4.3
#> [21] S4Vectors_0.48.0 lifecycle_1.0.4 stringr_1.6.0 compiler_4.5.2
#> [25] farver_2.1.2 textshaping_1.0.4 Seqinfo_1.0.0 htmltools_0.5.8.1
#> [29] sass_0.4.10 yaml_2.3.10 lazyeval_0.2.2 plotly_4.11.0
#> [33] tidyr_1.3.1 pillar_1.11.1 pkgdown_2.2.0 jquerylib_0.1.4
#> [37] DelayedArray_0.36.0 cachem_1.1.0 viridis_0.6.5 abind_1.4-8
#> [41] tidyselect_1.2.1 zip_2.3.3 digest_0.6.39 stringi_1.8.7
#> [45] purrr_1.2.0 labeling_0.4.3 cowplot_1.2.0 fastmap_1.2.0
#> [49] grid_4.5.2 cli_3.6.5 SparseArray_1.10.2 magrittr_2.0.4
#> [53] S4Arrays_1.10.0 withr_3.0.2 scales_1.4.0 rmarkdown_2.30
#> [57] XVector_0.50.0 httr_1.4.7 matrixStats_1.5.0 gridExtra_2.3
#> [61] ragg_1.5.0 openxlsx_4.2.8.1 kableExtra_1.4.0 evaluate_1.0.5
#> [65] knitr_1.50 GenomicRanges_1.62.0 IRanges_2.44.0 viridisLite_0.4.2
#> [69] rlang_1.1.6 Rcpp_1.1.0 glue_1.8.0 xml2_1.5.0
#> [73] BiocGenerics_0.56.0 svglite_2.2.2 rstudioapi_0.17.1 jsonlite_2.0.0
#> [77] R6_2.6.1 MatrixGenerics_1.22.0 systemfonts_1.3.1 fs_1.6.6Bibliography
Morgan, Martin, Valerie Obenchain, Jim Hester, and Herv?? Pag??s. 2025.
“SummarizedExperiment: A container (S4 class)
for matrix-like assays.” Bioconductor. https://doi.org/10.18129/B9.bioc.SummarizedExperiment.
Schmidt, Christina, Denes Turei, Dimitrios Prymidis, Macabe Daley,
Christian Frezza, and Julio Saez-Rodriguez. 2025. “Integrated
Metabolomics Data Analysis to Generate Mechanistic Hypotheses with
MetaProViz.” BioRxiv. https://doi.org/10.1101/2025.08.18.670781.
